Luer Dispensing Tips

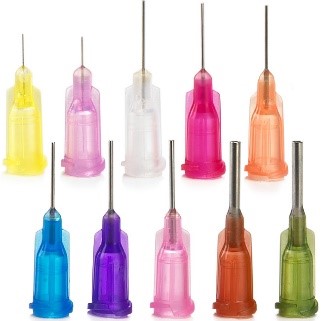

NC STRAIGHT DISPENSING TIPS

The NC straight dispensing tips consist of a stainless-steel shaft with a double helix polypropylene hub. This range of dispensing tips have electro-polished shafts offering unobstructed and consistent material flow. In addition they are silicone and chloride free. Designed to dispense most viscosity adhesives and sealants. Safe for use to 100 psi. Package: 100pcs/bag.



Gauge


1/4"

6.35mm

1/2''

12.70mm

1

25.40mm

1.5

38.10MM

ID
MM

OD
MM

Colour


Package


14G

NC714025

NC714050

NC714100

NC714150

1.55

2.10

Olive

100

15G

NC715025

NC715050

NC715100

NC715150

1.36

1.80

Amber

100

17G

NC717025

NC717050

NC717100

NC717150

1.06

1.48

Clear

100

18G

NC718025

NC718050

NC718100

NC718150

0.90

1.20

Green

100

20G

NC720025

NC720050

NC720100

NC720150

0.62

0.90

Pink

100

21G

NC721025

NC721050

NC721100

NC721150

0.51

0.82

Purple

100

22G

NC722025

NC722050

NC722100

NC722150

0.41

0.73

Blue

100

23G

NC723025

NC723050

NC723100

NC723150

0.33

0.63

Orange

100

25G

NC725025

NC725050

NC725100

NC725150

0.25

0.51

Red

100

27G

NC727025

NC727050

NC727100

NC727150

0.21

0.40

Clear

100

30G

NC730025

NC730050

NC730100

NC730150

0.16

0.30

Lavender

100

32G

NC732025

NC732050

NC732100

NC732150

0.11

0.23

Yellow

100

34G

NC734025

NC734050

NC734100

NC734150

0.08

0.20

Dark Green

100

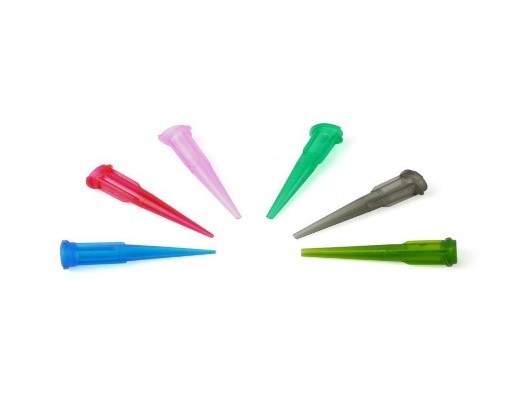

TT TAPERED TIPS



High quality tapered tips available in gauge sizes from 14 to 25.  Suitable for all types of adhesives and sealants. Double helix luer locking threads offer safe attachment to all syringes and valves. Package: 100pcs/bag.

General Purpose -



Gauge

Part

Colour

ID mm

Package

16G

NC16

Grey

1.20+/-0.03

100

20G

NC20

Pink

0.63+/-0.03

100

22G

NC22

Blue

0.41+/-0.03

100







UV BLOCKED -

Gauge

Part

Color

ID mm

Package

14G

NC14-N

Olive

1.50+/-0.03

100

16G

NC16-N

Grey

1.20+/-0.03

100

18G

NC18-N

Green

0.84+/-0.03

100

20G

NC20-N

Pink

0.63+/-0.03

100

22G

NC22-N

Blue

0.41+/-0.03

100

25G

NC25-N

Red

0.28+/-0.03

100





UV BLOCKED -



Gauge

Part

Color

ID mm

Package

14G

NC14-B

Black

1.50+/-0.03

100

16G

NC16-B

Black

1.20+/-0.03

100

18G

NC18-B

Black

0.84+/-0.03

100

20G

NC20-B

Black

0.63+/-0.03

100

22G

NC22-B

Black

0.41+/-0.03

100

25G

NC25-B

Black

0.28+/-0.03

100

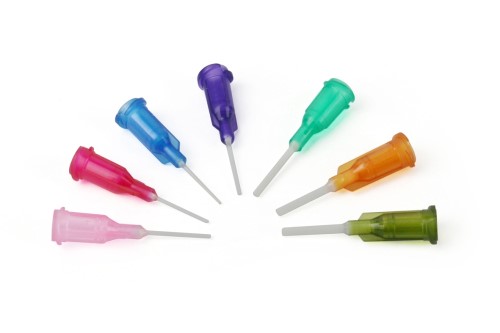

PP FLEXIBLE DISPENSING TIPS



Polypropylene tips include a plastic double helix locking hub, with a polypropylene canula (tubing). These tips are excellent for dispensing into small areas or through holes. The luer locking helix thread prevents the tip from working loose under pressure.  Flexible needle tips for use with most adhesives. Package: 100pcs/bag.



Gauge

1/4‘’

6.35mm

1/2‘’

12.70mm

1‘’

25.40mm

1.5‘’

38.10mm

Color

ID mm

OD mm

Package

14G

NC614025

NC614050

NC614100

NC614150

Olive

1.40

1.80

100

15G

NC615025

NC615050

NC615100

NC615150

Amber

1.35

1.65

100

18G

NC618025

NC618050

NC618100

NC618150

Green

0.80

1.46

100

20G

NC620025

NC620050

NC620100

NC620150

Pink

0.62

0.90

100

22G

NC622025

NC622050

NC622100

NC622150

Blue

0.41

0.73

100

25G

NC625025

NC625050

NC625100

NC625150

Red

0.25

0.51

100

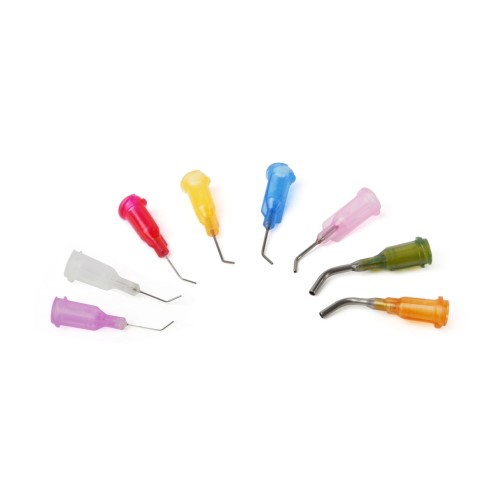

ANGLED DISPENSING TIPS NC



The angled range of tips consist of a stainless-steel shaft with a double helix polypropylene hub. This range of dispensing tips have electro-polished shafts offering unobstructed and consistent material flow. In addition they are silicone and chloride free. Designed to dispense most viscosity adhesives and sealants. Safe for use to 100 psi. These tips are available with a 45 or 90 degree bend. Package: 100pcs/bag.



Gauge

1/2'' 45 Degree

1/2‘’ 90 Degree

1‘’ 45 Degree

1‘’ 90 Degree

Color

14G

NC71405045

NC71405090

NC71410045

NC71410090

Olive

15G

NC71505045

NC71505090

NC71510045

NC71510090

Amber

18G

NC71805045

NC71805090

NC71810045

NC71810090

Green

20G

NC72005045

NC72005090

NC72010045

NC72010090

Pink

21G

NC72105045

NC72105090

NC72110045

NC72110090

Purple

22G

NC72205045

NC72205090

NC72210045

NC72210090

Blue

23G

NC72305045

NC72305090

NC72310045

NC72310090

Orange

25G

NC72505045

NC72505090

NC72510045

NC72510090

Red

27G

NC72705045

NC72705090

NC72710045

NC72710090

Clear

30G

NC73005045

NC73005090

NC73010045

NC73010090

Lavender

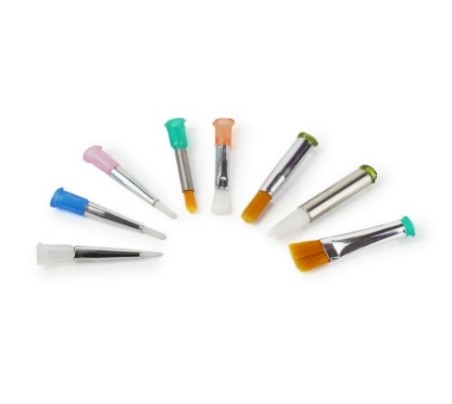

BRUSH TIP NEEDLE



Double helix brush tips for applications requiring the adhesive/sealant to be brush applied. The brush is made of nylon. Supplied in a pack of 12 and also available in a pack of 1. High quality for multi-use with all applicator guns, pneumatic dispensers, valves and robots. Tip length is 1.5". Features include a threaded luer lock hub for safe attachment. Soft bristle or stiff bristle brushes are available. Silicone free. Safe for use up to 100 psi.

ParA240:J251

Shape

W(mm)

Gauge

L X D(mm)

Bristle

NC-BT001

Round

2mm

20G-27G

40 X ¢5mm

Nylon /  White Soft and Yellow Stiff

NC-BT002

Round

3mm

18G-27G

42 X ¢4mm

Nylon /  White Soft and Yellow Stiff

NC-BT003

Round

¢3mm

18G-27G

41 X ¢5mm

Nylon /  White Soft and Yellow Stiff

NC-BT004

Flat

3.5mm

18G-27G

41 X ¢5mm

Nylon /  White Soft and Yellow Stiff

NC-BT005

Round

4mm

14G-27G

42 X ¢6mm

Nylon /  White Soft and Yellow Stiff

NC-BT006

Round

5mm

14G-27G

42 X ¢6mm

Nylon /  White Soft and Yellow Stiff

NC-BT007

Flat

5mm

14G-27G

42 X ¢6mm

Nylon /  White Soft and Yellow Stiff

NC-BT008

Flat

6mm

14G-27G

42 X ¢6mm

Nylon /  White Soft and Yellow Stiff

NC-BT009

Round

6mm

14G-27G

42 X ¢6mm

Nylon /  White Soft and Yellow Stiff

NC-BT010

Flat

7mm

14G-27G

42 X ¢6mm

Nylon /  White Soft and Yellow Stiff

NC-BT011

Flat

10mm

14G-27G

42 X ¢6mm

Nylon / White Soft and Yellow Stiff

NC-BT012

Flat

11mm

14G-27G

42 X ¢6mm

Nylon /  White Soft and Yellow Stiff

NC-BT013

Round

4mm

14G-27G

42 X ¢6mm

Nylon /  White Soft and Yellow Stiff

NC-BT014

Flat

4mm

18G-27G

42 X ¢6mm

Nylon /  White Soft and Yellow Stiff

NC-BT015

Flat

5mm

14G-27G

42 X ¢6mm

Nylon /  White Soft and Yellow Stiff

NC-BT016

Flat

6mm

14G-27G

42 X ¢6mm

Nylon /  White Soft and Yellow Stiff



Contact us now with your enquiry – sales@novachem.ie
